First multifunction generator developed for drones
The XGEN 10 and XGEN 20 generators have been developed by Xmobots to transform agricultural drone operations. Powerful, reliable and connected to the demands of the field, they offer what you need: autonomy, stability and versatility so you don't stop producing.
Two models. Multiple possibilities. Just one confidence: XGEN!
Which XGEN is right for your operation?
XGEN 20
Power, robustness and stability for operations with 30L or larger spraying drones
The XGEN20 is an energy generator set developed specifically to power the operating structure of spraying drones with a volume of more than 30L. It is capable of powering the battery charger, grout mixer, pumps, lighting, antennas and various other day-to-day accessories for spraying with drones.
33% more power
Power of 20Kva, 33% higher than the reference generator on the market, guaranteeing fast and safe charging of the batteries without the risk of risk of instability.
The only one in its class with electronic fuel injection
More efficient fuel consumption, quick starts, lower pollutant emissions - even with low octane fuel.
Automatic Voltage Regulator System (AVR)
Keeps the output voltage stable, protecting the equipment and increasing its useful life.
Enhanced security
Low oil sensor that automatically shuts down the engine when it detects levels below the recommended level.
Autonomy of up to 10h
A 50-liter fuel tank combined with electronic fuel injection provides more operating time in the field and battery charging power.
Operation at 70% load
The XGEN 20, which powers the T50's battery charger, mixer, lighting and antennas, operates at 70% load, guaranteeing a longer service life for the generator and being more tolerant of hot regions.
Sockets for agricultural operations
They allow secure connections, prevent overheating and damage to sockets.
Continuous and integrated operation
Compatible with DJI AGRAS drones - including the T30, T40 and T50 - it supports simultaneous drone battery charging , XMixercontrol , XRTK base, antennas such as satellite internet* and lighting for night applications.
*Internet service not included, charged separately directly by the operator.
Technical specifications
Type:
Air-cooled gasoline generator;
Oil capacity:
1.5 liters;
Engine displacement:
999 cc;
Maximum rotation:
3600 RPM;
Power:
20.0 kVA (nominal) | 21.3 kVA (maximum);
Starting system:
Electrical;
Output voltage:
220V Single-phase and 380V Three-phase;
Frequency:
60 Hz;
Auxiliary output:
12VDC 8A;
Fuel tank:
50 liters;
Additional features:
AVR system, digital hour meter and industrial sockets.

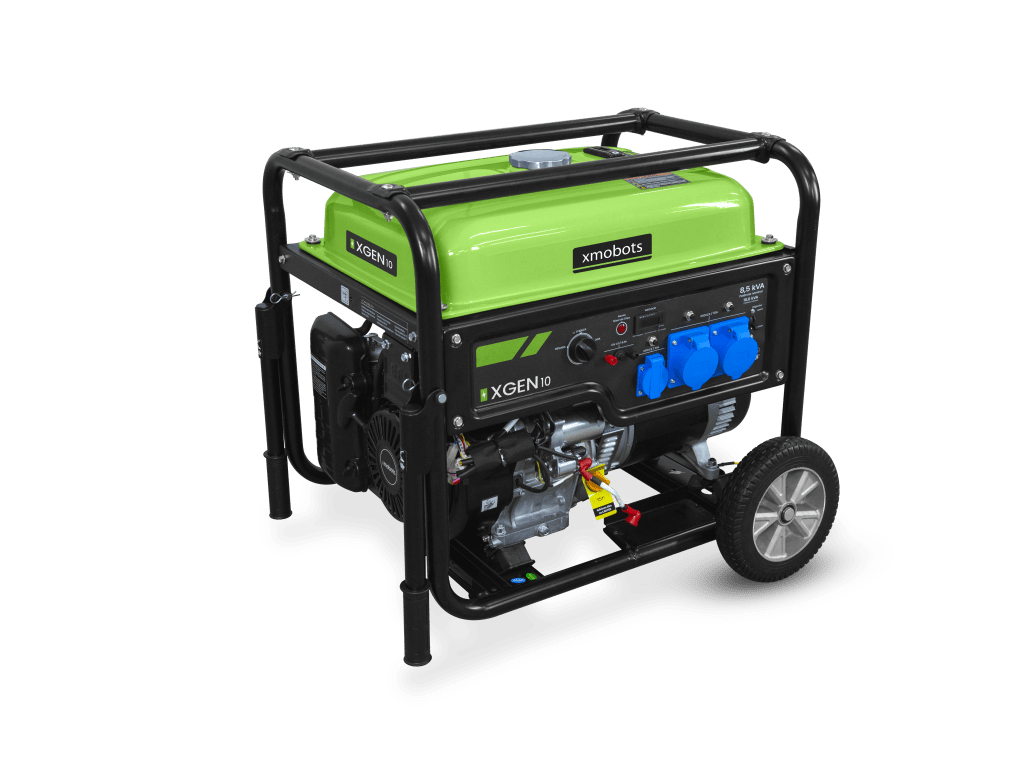

XGEN 10
Portability, efficiency and stability for operations with 25L or smaller spraying drones
The XGEN10 is an energy generator set developed specifically to power the operating structure of spraying drones with a volume of less than 25L. It is capable of powering the battery charger, grout mixer, pumps, lighting, antennas and various other day-to-day drone spraying accessories.
Portability and robustness
Compact, sturdy and designed for the real world.
The only one in its class with electronic fuel injection
More fuel economy, faster starts, lower pollutant emissions - even with low-octane gasoline.
Automatic Voltage Regulator System (AVR)
Keeps the output voltage stable, protecting the equipment and increasing its useful life.
Enhanced security
Low oil sensor that automatically shuts down the engine if the level is below ideal.
Autonomy of up to 9 hours
The 38-liter tank - the largest in its category - combined with the electronic injection system, provides more operating time at the power of battery charging power.
Operation at 70% load
The XGEN10, which powers the T25's battery charger, mixer, lighting and antennas, operates at 70% charge, guaranteeing a longer service life for the generator. the generator and is more tolerant of hot regions.
Sockets for agricultural operations
Two 30º industrial and one 20A NBR standard, offering flexibility for different types of connections.
Continuous and integrated operation
Compatible with drones in the DJI AGRAS range - including the T10, T20P and T25 - it supports simultaneous drone battery charging, control XMixercontrol, XRTK base, antennas such as satellite internet* and lighting for night applications.
*Internet service not included, charged separately directly by the operator.
Technical specifications
Type:
Air-cooled gasoline generator;
Oil capacity:
1.1 liters;
Engine displacement:
459 cc;
Maximum rotation:
3600 RPM;
Power:
8.5 kVA (nominal) and 10.6 kVA (maximum);
Starting system:
Electrical;
Output voltage:
220V Single phase;
Frequency:
60 Hz;
Auxiliary output:
12VDC 8A;
Fuel tank:
38 liters;
Additional features:
AVR system, digital hour meter and industrial sockets.
Why choose an XGEN generator?
With XGEN generators, you have the confidence of engineering designed for agriculture - with the power and energy needed to keep your drone running and stability in every detail.
Compatible with the main drones in the DJI AGRAS range;
Factory electronic injection;
Extended autonomy with large capacity tanks;
Stability and safety for your equipment;
Ready for continuous operation, with performance and reliability;
After-sales support and specialized maintenance;
Development with Xmobots' 20 years of market expertise!
Whatever the size of your field or the pace of your workday, there's an XGEN ready to accompany you in what really matters: results in the field!
XGEN
See also
DJI AGRAS T25 P
- The DJI Agras T25P drone retains its compact, foldable design, featuring 20 kg spraying, an upgraded 25 kg 4.0 high-precision screw dispensing system, and Safety System 3.0.
DJI AGRAS T70 P
- The DJI Agras T70P agricultural drone has recently been upgraded to support spraying and spreading in various operational scenarios, with a maximum load capacity of 70 kg.
DJI AGRAS T100
- The T100 Agricultural Drone, an innovative creation that took twelve years to develop, has a maximum payload of 100 kg. Its operational efficiency is doubled, supporting multiple application scenarios, including spraying and spreading.
DAASFY
- You're the owner of the property, you've invested in the drone and you have an employee to operate it... but do you still feel that spraying is far from ideal? Without knowing exactly where, when and how each application was made, it's difficult to guarantee the best result -
SPAD 200B
- The SPAD 200B is a system that defines high-performance agricultural operations, offering robust, automated logistics for aerial spraying with drones. With the capacity to carry two DJI AGRAS drones (T50, T40 or T30), the SPAD 200B guarantees a high level of performance.
XRTK
- XRTK is a high-precision navigation solution, using RTK technology to guarantee maximum accuracy in drone operations, essential for tasks that require millimetre precision.
XMIXER
- Get to know the Xmobots syrup mixer, a 100% national piece of equipment made with resistant parts to prepare the syrup, triple-wash the packaging, supply the drone and wash the utensils.

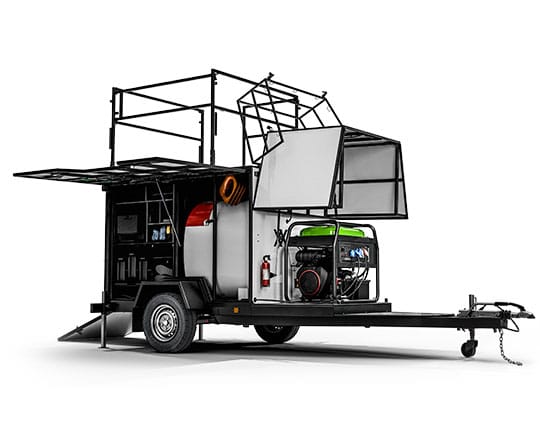

SPAD
