The invisible ally

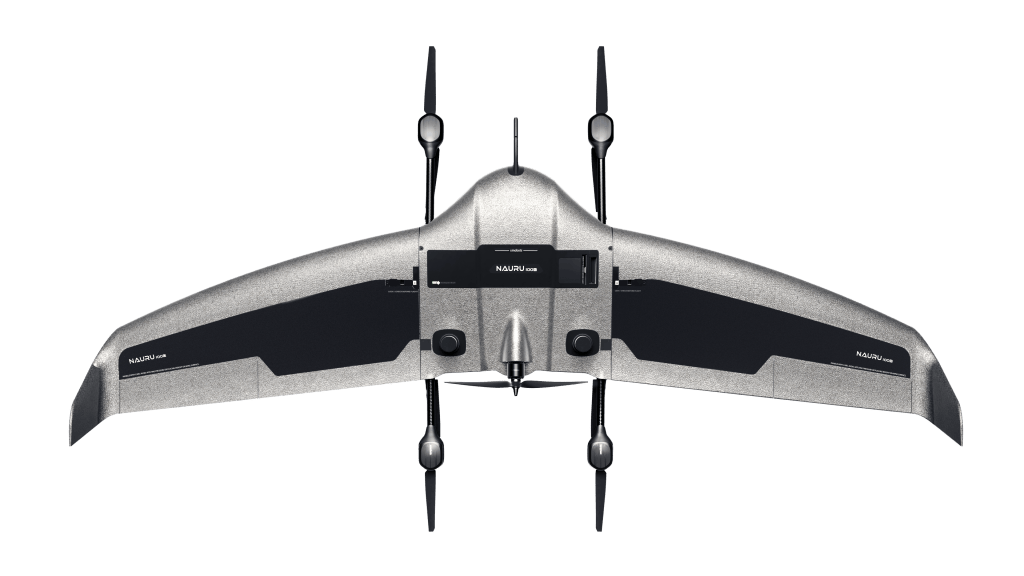

The Nauru 100D is an eVTOL UAS developed for ISTAR missions. Versatile, portable and transportable by two soldiers, it can take off from clearings and fly for two hours at a distance of up to 30 kilometers.
No matter what the environment or how challenging the mission, the Nauru 100D is always ready.
The invisible ally
The Nauru 100D is an eVTOL UAS developed for ISTAR missions. Versatile, portable and transportable by two soldiers, it can take off from clearings and fly for two hours at a distance of up to 30 kilometers.
No matter what the environment or how challenging the mission, the Nauru 100D is always ready.
Endurance
2 hours (standard) per battery
Operational Scope.
20km - 30km
Wingspan
2.1 meters
Cruise Speed
17 m/s | 33kt
Flight Regulation:
Above 400ft, day and night
Maximum Take-Off Weight (MTOW):
9 kg
Low detectability:
Typical visual, acoustic, thermal and radar reduction (RCS)
Weather resistance:
Operates in heavy rain (20 mm/h)
Endurance
2 hours (standard) per battery
Operational Scope.
20km - 30km
Wingspan
2.1 meters
Cruise Speed
17 m/s | 33kt
Flight Regulation:
Above 400ft, day and night
Maximum Take-Off Weight (MTOW):
9 kg
Low detectability:
Typical visual, acoustic, thermal and radar reduction (RCS)
Weather resistance:
Operates in heavy rain (20 mm/h)
Every second counts
In critical operations, readiness defines success. With Plug & Play technology, the Nauru 100D is assembled in less than three minutes. Its simplified interface and intuitive controls ensure maximum efficiency.
Every second counts
In critical operations, readiness defines success. With Plug & Play technology, the Nauru 100D is assembled in less than three minutes. Its simplified interface and intuitive controls ensure maximum efficiency.
Start your mission with just a few steps!
Wing assembly | Battery and gimbal fitting | Immediate take-off
The Nauru 100D has been designed to offer simplified and efficient maintenance, ensuring greater operational availability in the field. Its fully integrated avionicsarchitecture (AMS - Automatic Management System) facilitates the diagnosis and management of systems, reducing downtime. In addition, its modular structure uses low-cost , disposablecomponents in the event of damage. Exchange instead of repair.
Lean system, with few parts and screws, and error-proof connectors, allowing easy and safe maintenance in the field.
The Nauru 100D has been designed to offer simplified and efficient maintenance, ensuring greater operational availability in the field. Its fully integrated avionicsarchitecture (AMS - Automatic Management System) facilitates the diagnosis and management of systems, reducing downtime. In addition, its modular structure uses low-cost , disposablecomponents in the event of damage. Exchange instead of repair.
Lean system, with few parts and screws, and error-proof connectors, allowing easy and safe maintenance in the field.
Start your mission with just a few steps!
Wing assembly | Battery and gimbal fitting | Immediate take-off
Anticipate every movement

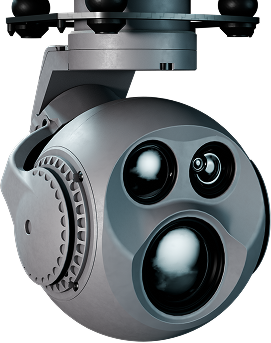

Maximize your power of action with the SIS031A sensor, the technology that transforms vision into strategy and intelligence. With advanced multi-target tracking, real-time distance calculation and precise identification, you have total mastery of the operational scenario.
Target Acquisition and Tracking
Equipped with RGB and LWIR thermal infrared sensors, the Nauru 100D offers high-definition, real-time images to support tactical decisions with maximum assertiveness - day or night!
Tracking fixed and moving targets on the ground (people, cars and boats)
Target acquisition Determining the geographic coordinates of the target
Pointing to coordinates defined by the operator
Anticipate every move
Maximize your power of action with the SIS031A sensor, the technology that transforms vision into strategy and intelligence.
With advanced multi-target tracking, real-time distance calculation and precise identification, you have complete control over the operational scenario.
Target Acquisition and Tracking
Equipped with RGB and LWIR thermal infrared sensors, the Nauru 100D offers high-definition, real-time images to support tactical decisions with maximum assertiveness - day or night!
Tracking fixed and moving targets on the ground (people, cars and boats)
Target acquisition Determining the geographic coordinates of the target
Pointing to coordinates defined by the operator
License plate reading
Vehicle tracking
Facial recognition
moving target
Search and rescue
Stealthy and easy to operate
With its low noise emission, the Nauru 100D has stealth characteristics - essential for covert missions.
eVTOL (Electric Vertical Take-off and Landing) technology allows access to restricted locations and strategic points.
The low thermal signature guarantees discreet operations.
Made from anti-reflective material, it is strategically invisible.
Start your mission with just a few steps!
1- Made of anti-reflective material, it offers strategic invisibility;
2- The low thermal signature guarantees discreet operations;
3- eVTOL (Electric Vertical Take-off and Landing) technology allows access to restricted locations and strategic points;
4- With its low noise emission, the Nauru 100D has stealth characteristics - essential for covert missions.
Portable and versatile
Compact, lightweight and extremely ergonomic, the Nauru 100D is your tireless partner ready to take on any challenge.
The UAS is transportable in two tactical backpacks with an optimized design for quick assembly/disassembly by two operators.
What's more, with two connected rugged tablets, you can form an integrated Command and Control Station without the need for additional infrastructure.
The Nauru 100D kit includes:
- Integrated ground control infrastructure: GDT, RTK base and dual GCS (ruggedized tablets) for simultaneous control of the UAS and sensors.
- Integrated battery charging system: compatible with 110/220Vac or 12/24Vdc power sources.
- Field-replaceable components for first-level maintenance.
Start your mission with just a few steps!
Compact, lightweight and extremely ergonomic, the Nauru 100D is your tireless partner ready to take on any challenge.
The UAS is transportable in two tactical backpacks with an optimized design for quick assembly/disassembly by two operators.
What's more, with two connected rugged tablets, you can form an integrated Command and Control Station without the need for additional infrastructure.
The Nauru 100D kit includes:
- Integrated ground control infrastructure: GDT, RTK base and dual GCS (ruggedized tablets) for simultaneous control of the UCAV and sensors.
- Integrated battery charging system: compatible with 110/220Vac or 12/24Vdc power sources.
- Field-replaceable components for first-level maintenance.
Energy for non-stop missions
Smart batteries
Battery charging system charging system: compatible with 110/220 VAC AC or 12/24 Vdc
Three batteries included
extending operational autonomy to more than six hours.
Recharging time
two-hour batteries.
Energy for non-stop missions
Smart batteries
Battery charging system charging system: compatible with 110/220 VAC AC or 12/24 Vdc
Three batteries included
extending operational autonomy to more than six hours.
Recharging time
two-hour batteries.
a complete combo
Serial production
to ensure affordability
Operational versatility
that adapts to your pace and needs.
Immediate support
fast maintenance and specialized training to give you total confidence in your new platform!
Proprietary technology
For 17 years, Xmobots has been driving Industry 4.0 in the aerospace sector by integrating automation into its production line.
In the development and manufacture of the Nauru 100D, robots programmed by specialized engineers work with precision to ensure uniformity in the production of the UAS.
With a production capacity of 360 units per month - more than 4,000 units per year - Xmobots delivers a reliable platform to the market.
Power consumption
Typical 10.5W, Max 55W
Tension
14.0V to 53
Operating temperature
-20℃ ~ +50℃
Video Interface
Digital (Ethernet)
Control
Ethernet
Local storage
Removable SD card (up to 256GB, class 10, FAT32)
Format of stored images
MP4 (1080P 25fps)
Mechanical rotation limits
Pan: 360° continuous Tilt: -150° to +50°
Visible spectrum (RGB)
Focal length:
4.7 ~ 47 mm
HFOV:
61,3° ~ 6,8°
Resolution:
Full HD 1920 x 1080
Zoom
10x optical (30x combined)
Thermal camera (LWIR)
Focal length
18mm
HFOV
24,0°
Resolution
640*512
-
Spectral range
8μm - 12μm, NETD ≤50mK@25℃
Accuracy (typical value)
≤ ±1m (RMS)
Angle of divergence
≤ 3.5mrad
Wavelength
905 nm
Range
5 - 1200m
Weight
608 g
Physical dimensions
96.4*96.0*147.0mm
Proprietary technology
For 17 years, Xmobots has been driving Industry 4.0 in the aerospace sector by integrating automation into its production line.
In the development and manufacture of the Nauru 100D, robots programmed by specialized engineers work with precision to ensure uniformity in the production of the UAS.
With a production capacity of 360 units per month - more than 4,000 units per year - Xmobots delivers a reliable platform to the market.
Power consumption
Typical 10.5W, Max 55W
Tension
14.0V to 53
Operating temperature
-20℃ ~ +50℃
Video Interface
Digital (Ethernet)
Control
Ethernet
Local storage
Removable SD card (up to 256GB, class 10, FAT32)
Format of stored images
MP4 (1080P 25fps)
Mechanical rotation limits
Pan: 360° continuous Tilt: -150° to +50°
Visible spectrum (RGB)
Focal length:
4.7 ~ 47 mm
HFOV:
61,3° ~ 6,8°
Resolution:
Full HD 1920 x 1080
Zoom
10x optical (30x combined)
Thermal camera (LWIR)
Focal length:
18mm
HFOV
24,0°
Resolution:
640 x 512
-
-
Spectral Range:
8μm - 12μm, NETD ≤50mK@25℃
Accuracy (typical value)
≤ ±1m (RMS)
Angle of divergence
≤ 3.5mrad
Wavelength
905 nm
Range
5 - 1200m
Weight
608 g
Physical dimensions
96.4*96.0*147.0mm
SIS 031A sensor parameters
Intelligence, surveillance and reconnaissance at operational and tactical levels.
Tracking land movements, such as ships, trains and groups of people.
Humans detected at 6km, recognized at 1.5km and identified at 0.8km.
Support for elite operations including target acquisition (target geolocation), observation and shot adjustment.
Vehicles detected at 15km, recognized at 4km and identified at 2km.
Tracking
of fixed and mobile targets on the ground (person, car and boat)
Target acquisition
Determining the geographical coordinates of the target
Note
for coordinates defined by the
Strategic concepts:
UCAV and Swarm
Based on the surveillance platform of the Nauru 100D UAS, Xmobots is developing two conceptual proposals for advanced military applications: the UCAV (Unmanned Combat Aerial Vehicle) and Swarm models. Both are currently being studied and represent a leap forward in operational capabilities.
The UCAV concept envisages a combat drone operating at high altitudes, radar evasion and millimeter-precision attacks. The proposal includes firing from a height of 60 meters, real-time trajectory correction and return to base for possible new missions. Among the payloads under study are high-explosive bombs (HE) and penetrating anti-tank bombs (HEAT).
The Swarm concept explores the simultaneous launch of up to 30 aircraft from a 20FT container - three for reconnaissance and 27 for coordinated attack. With an expected range of between 120 km and 340 km, the proposal signals a new dynamic for the operational field, with a focus on target saturation and large-scale tactical response.
Reliable. Discreet. Relentless
A truly elite soldier!
